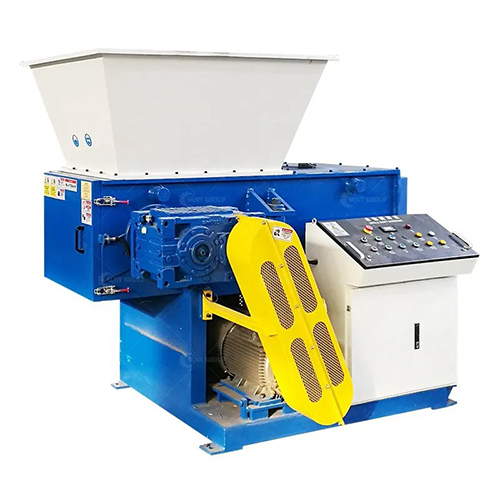

Plastic Lumps Shredding Machine Single Shaft Shredder For Sale

6500.00 - 65000.00 USD ($)/Unit

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Plastic Lumps Shredding Machine Single Shaft Shredder For Sale Price And Quantity

Minimum Order Quantity 1 Unit
Price Range 6500.00 - 65000.00 USD ($)/Unit

Plastic Lumps Shredding Machine Single Shaft Shredder For Sale Trade Information

Delivery Time 30 Days
Main Export Market(s) Asia Australia Central America North America South America Eastern Europe Western Europe Middle East Africa

Product Description

Key Attributes:

Place of Origin	Henan, China
Condition	New
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	New Product 2020
Warranty of core components	1 Year
Core Components	Gearbox, Motor
Warranty	1 Year
Power (kW)	38
Weight (KG)	3000
Key Selling Points	Multifunctional
Applicable Industries	Manufacturing Plant, single shaft shredder
Showroom Location	Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia, Australia, Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia
Brand Name	SUNY
Material / Metal Processed	Stainless steel, Brass / Copper, ALLOY, Carbon steel, Aluminum
Type	ZYDZS-800
Capacity	500-1000Kg/h
Energy supply	AC/3A/50HZ, 380 V or customerized
Raw material	Scrap PCB;TV, Cellphone, Computer Board and other print circuit board
Final Materials Size	about 4-8cm
Machine Power	45Kw
Certification	CE ISO
Machine Weight	3.5ton
Blade Materials	As per your demands
Packaging and delivery
Packaging Details	Waste Computer Phone Wire Copper Cable Separator Scrap Copper Cable Granulating Machines are packaged according to the industry standard.
Port	We default port is Qingdao, and other Chinese ports is ok
Supply Ability
Supply Ability	20 Set/Sets per Month Copper Wire Separator Scrap Copper Cable Granulating Machine

Technical Parameters:

Model	ZY-S600	ZY-S800	ZY-S1000	ZY-S1200	ZY-S1500
Motor Power (kw)	22	45	55	75	110
Rotor-knives (pcs)	26+4	36+6	48+6	58	98
Blade Material	Cr12MoV SKDII D2	Cr12MoV SKDII D2	Cr12MoV SKDII D2	Cr12MoV SKDII D2	Cr12MoV SKDII D2
Rotor Diameter (mm)	260	400	400	500	550
Rotor Speed (r/min)	75	75	75	80	80
Cutting Chamber (mm)	600x600	800x800	1000x1000	1200x1200	1500x1500
Hydraulic Power (kw)	2.2	3	4	5.5	7.5
Cylinder Stroke (mm)	600	800	1000	1200	1500
Machine Size (mm)	1800x1600x1850	2200x1780x2100	2500x1850x2300	3500x2000x2400	4800x2300x2400
Weight (kg)	2200	3700	4500	7000	9800

Suitable Raw Materials:

lt is mainly used for shredding and recycling various thick-wall waste materials and leftover materials in the plastic industry. lt can effectively shred and crush large materials (such as extra-thick head materials, nozzle materials, gate materials, large plastic pipe fittings, large-diameter thick-wall PE pipes, PE head materials, plastic,packaging barrels, large bundles of plastic films, large bundles of woven bags, rolled,films, paper, fibers, plastic boxes, plastic garbage cans, TV casings, computer shells printer housings,copper wires, forklift pallets, plastic clamping plates, plastic turnover boxes, etc.) and is suitable for crushing and recycling various materials of plastic rubber and wood. Shredded particles can be small to 20mm according to different needs.

Advantage:

The main shaft is driven by gear reducer, running smoothly, with low noise and large torque.
The material of the knife: Cr12MoV (Japanese brand SKD-11, American brand D2); the moving knife uses the "y" or "one" word installation way to make the knife cut evenly. reduce energy consumption and reduce noise in the whole work; each knife has 4 cutting edges, and then rotates 90 degrees after wear; each set has 2 cutting edges. After wearing, it can be rotated for 180 degrees to continue to use: the blade on the rotor can be disassembled for easy cleaning, maintenance.
We can supply different rollers according to different material. Choosing the right rollers can improve machine performance and production efficiency. We can supply the following three rollers: High performance roller, hard material roller and film roller.
We have designed three different knives holders according to the material, such as welded knife holders, assembled knife holders and CNC cutting knife holders.
